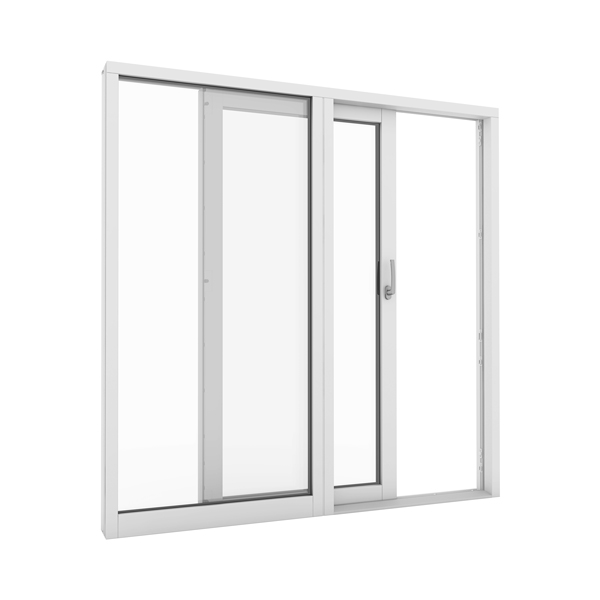

The door must be wedged to support the weight of people walking on the threshold.

We recommend a full packer under the full width of the threshold. Alternatively 100 mm wide packers can be used with a max distance of 200 mm (A)

The sill/threshold must be level and straight. It can under no circumstances bend up or down.

Place permanent wedging below the jambs (B). When securing, ensure that the point can absorb compressive forces.

We recommend placing permanent wedging above the jambs (C). When securing, ensure that the point can absorb compressive forces.

We recommend placing permanent wedging behind keeps and end stops at the jamb in the closing side of the sliding door.

The tolerance on diagonal measurements is ±2 mm.

Permanent wedging at the frame head may only be used if the load from any window/door unit above does not subject the frame profile to stress apart from at the jambs and mullions.



Wedging material must be moisture resistant, min. 40 mm wide and placed max 22 mm. behind the front edge of the frame and support both timber and aluminium.

Packers under the threshold must support no more than 20 mm from the front edge and no more than 26 mm from the back edge of the threshold.

Depending on the location of the seal slip tape can be needed on the packing material – according to FSO Sealing guide.









When fixing directly through the frame into the building structure place the fixings in the shaded area shown below. Jambs should be fixed 150 mm from the corners and at a distance of no more than 600 mm between fixings.
When fixing through aluminium or fibre we recommend using screws with a head.

When fixing through timber the screws must be countersunk.

When fixing though the aluminium of the jambs, screws must be recessed and covered with a plastic cap.

When fixing though the aluminium at the head, we recommend placing screws behind the guide track. Refit the guide track after securing the head.

When fixing behind the guide track, only fix one side at a time – so that the sliding sash is always guided by the track.
Fixing screws in the threshold frame must be sealed.



Direct fixing















The door must be wedged to support the weight of people walking on the threshold.

We recommend a full packer under the full width of the threshold. Alternatively 100 mm wide packers can be used with a max distance of 200 mm (A)

The sill/threshold must be level and straight. It can under no circumstances bend up or down.

Place permanent wedging below the jambs (B). When securing, ensure that the point can absorb compressive forces.

We recommend placing permanent wedging above the jambs (C). When securing, ensure that the point can absorb compressive forces.

We recommend placing permanent wedging behind keeps and end stops at the jamb in the closing side of the sliding door.

The tolerance on diagonal measurements is ±2 mm.

Permanent wedging at the frame head may only be used if the load from any window/door unit above does not subject the frame profile to stress apart from at the jambs and mullions.



Wedging material must be moisture resistant, min. 40 mm wide and placed max 22 mm. behind the front edge of the frame and support both timber and aluminium.

Packers under the threshold must support no more than 20 mm from the front edge and no more than 26 mm from the back edge of the threshold.

Depending on the location of the seal slip tape can be needed on the packing material – according to FSO Sealing guide.









When fixing using brackets these must be fixed into both the timber and Idealcore™ (PUR) of the frame, as illustrated. Jambs should be fixed 150 mm from the corners and at with a distance of no more than 600 mm between brackets. At the head and sill the fixing points can be max 600 mm apart.

Fixing brackets are secured into the marked areas, 150 mm from corners and with a maximum distance of 600 mm.

NOTE: for the fixed part of the sliding door screws can be no longer than 27 mm.





Joint elements are placed with a distance of 8 mm and are secured with 5×80 mm wood screws.
Sealant/adhesive is applied to both sides of the packer between elements.
Mastic or compriband to be used externally.







Place adjoining elements with a spacing of 8 mm and screw them together using 5 x 80 mm wood screws through the wood and 5 x 35 mm screws through the aluminium part of the frame. Apply mastic between the elements and spacer strip/ cross tongue. Seal externally using CompriBand or mastic.



In 90˚ assemblies, the units are fitted to the size-adjusted column and the covering is attached to this.
Sealant must be applied between the window units. Exterior seal with Compriband.





The outer aluminium sash and frame surfaces are affected by the surrounding environment such as city and industrial areas with high traffic intensity and air pollution and coastal areas with salty air which soil and affect the surface more than clean country air.

Cleaning should be done on a regular basis and at least twice a year, maybe in connection with window cleaning. Wash sash and frame surfaces in lukewarm water with a neutral cleaning fluid such as car shampoo and wipe surfaces and edges with a cloth.

The external aluminium profiles are as standard chrome free and surface treated with a polyester powder coating. This treatment offers a very strong and weather-resistant surface requiring only limited maintenance. In practice, this means cleaning it a couple of times a year with a soft brush or cloth and lukewarm water with a neutral cleaning fluid such as car shampoo.

Minor damage to the surface treatment will not affect the element’s durability since a natural oxide film quickly forms on exposed aluminium, preventing corrosion and white rust attacks.

However, for cosmetic reasons it may be desirable to repair such damage and Idealcombi’s Technical Department would be happy to provide advice and guidance. Call us on 01582 860 940.

The outer aluminium covering on our products in timber|aluminium can alternatively be supplied with anodic treatment. Once the aluprofiles have been chemically prepared and cleaned thoroughly, they undergo an electrolytic process. Direct current is applied to the profiles which become anodised, thus turning the surface metal into oxide. This process continues until the desired film thickness has been achieved.

An anodised surface treatment provides excellent corrosion resistance in most environments while keeping the surface very smooth and dirt repellent. On top of that it has the ability to preserve what we call a “new” appearance.

Anodised alu-profiles are almost maintenance-free provided that the surface is cleaned a couple of times a year with a soft brush or cloth and lukewarm water with a neutral cleaning fluid such as car shampoo.

When cleaning the wooden parts with lukewarm water and a neutral cleaning fluid, check for any damage or wear to the surface treatment.

All wood profiles from Idealcombi are quality optimised and finger jointed/ laminated ensuring elimination of at least 95% of all knots, star shakes and other defects. This gives the wood profiles greater stability and significantly reduces problems such as knot discoloration, yellow blotches and resin lumps in the surface treatment.

Please bear in mind that wood is a natural material and as such resin lumps may form underneath the paint and discoloration from the wood treatment may occur – even with the best surface treatment.

Small droplets of resin penetrating the paint can easily be removed with rubbing alcohol.

If small lumps of resin form underneath the paint, leave them for 2-3 years or until the resin has penetrated the surface treatment, then remove them with rubbing alcohol or, in more serious cases, scrape and sandpaper them away before applying new paint.

Yellow discoloration, which can normally be removed with rubbing alcohol, often occurs on light colour finishes.

The above mentioned problems are often more pronounced during hot summers (tropic climates) and may occur rapidly particularly on facades facing south.

For further information please see Danish Window Certification appendix 14, page 28 of the technical regulations which deal with “Expected outcome of industrially surface treated timber elements”.

It is important to lubricate and maintain all ironmongery to ensure easy operation and function of Idealcombi’s windows and doors, this is also a requirement to maintain the product guarantee.

For lubrication, use an acid-free lubricant followed by an acid-free spray grease. Lubrication can be made with an oil can, a syringe or a spray can with a thin pipe. For further advice on lubrication, please call Idealcombi’s Service Department on tel. 01582 860 940.

Lubrication and maintenance frequency depend on the use and the effect weather conditions, pollution, etc. have on the ironmongery.

We know from experience that ironmongery used in for instance city and industrial areas, areas with high traffic intensity and coastal areas with salty air should be lubricated and maintained more often than ironmongery in a less harsh environment.

Generally, all moveable parts on hinges and closing/locking ironmongery should be lubricated as required, however, at least once a year.

Hinges should be lubricated in all joints during repeated activation, so that the lubricant reaches the movable arms.
The joints should be lubricated on the outside and in the crack between the arms. Use an easily penetrating acid-free oil followed by a long-lasting acid-free grease in spray form.

Hinges should be lubricated in all joints during repeated activation, so that the lubricant reaches the movable arms.
The joints should be lubricated on the outside and in the crack between the arms.

Sliding surfaces, hinge sliders and sliding blocks should be maintained in a clean state to facilitate sliding.

IMPORTENT!
The sliding surfaces in the sliding rails are lubricated with Berner PTFE oil or equivalent along the entire length the rails.

Should be lubricated in all moving parts, lock boxes and by bolts and keeps while activating the mechanism continuously, to ensure the lubricant penetrates in between all moving parts.



During the annual maintenance service, cleaning and lubricating ironmongery, weatherstrips and glazing gaskets should be inspected.

Our weatherstrips are made from EPDM rubbers and several of them in a combination with a solid foot and a soft cellular sealing surface.
The weatherstrips do not require any special maintenance but should be kept clean and free of dirt. This is done by wiping them off once a year with lukewarm water and a neutral cleaning fluid using a cloth. We recommend brushing the weatherstrips with a silicone stick to minimize friction during operation.
Also check that the weather strips are positioned and secured correctly and that they have maintained their sealing function.

All weatherstrips are loosely fitted in a perimeter groove making them easy to remove and install on most element types if they are damaged and need replacement – or in connection with surface treatment maintenance.
Never paint weatherstrips or brush them with wood preservatives/oils.

Glazing gaskets are made of EPDM/cell rubbers and doe not require any special maintenance but should be kept clean and free of dirt. This is done by wiping them off once a year with lukewarm water and a neutral cleaning fluid using a cloth.
