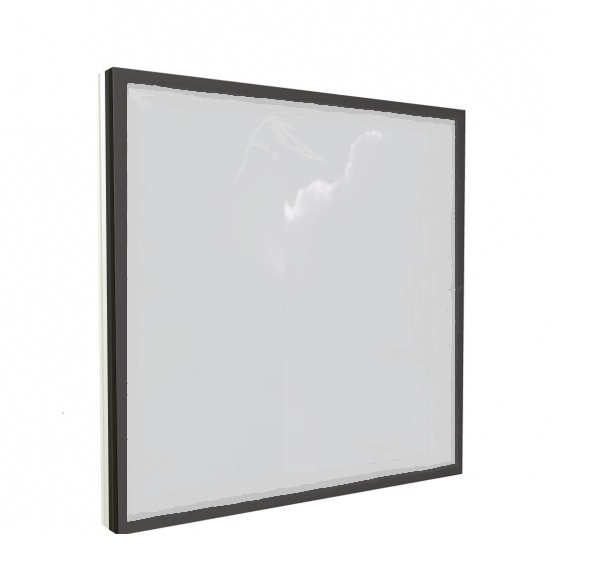

Futura+ Fixed light

Use:

The Fixed light is most often used in conjunction with other windows with opening sashes. The fixed light is used only as a light source.



Function:

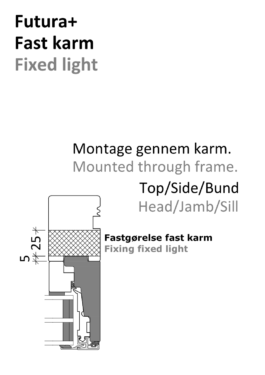

In the fixed light, glass is mounted directly in the frame and is without any kind of opening function.

  • Product information:
  • Uw: Triple: 0,68 W/m²K
  • Glass dimensions: 48 mm (4-18-4-18-4)
  • Styling bar: 22/22 mm, 53 mm and 116 mm
  • Frame dimensions: 50 x 149 mm / 175 mm
